1.Product Information :
Material: Carbon steel or Boron steel 30mnB
Colors: Black or yellow
Technique: Forging casting
Surface Hardness: Carbon HRC280-320HB Boron HRC440-520HB
Yielding Point: Carbon 600Re-N/mm2 Boron 1440N/mm2
Certification: ISO9001-9002
FOB Price: FOB Xiamen USD 40-45/Piece
MOQ:USD4000
Delivery Time: Within 30 days after contract established

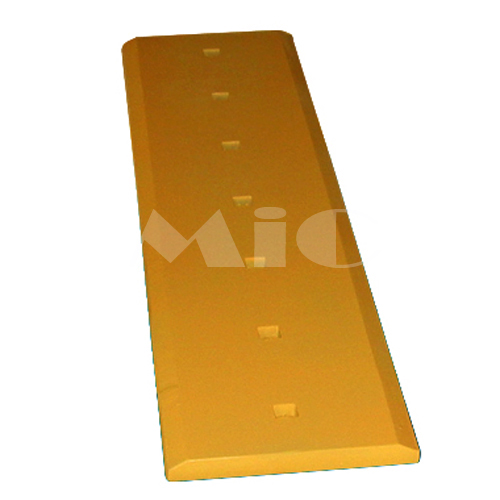

We offer a wide selection of blades manufactured from several grades of high carbon and boron steel. Many of these products are made from both high carbon and boron steel that are heat-treated and hardened to improve the lifespan while meeting the demanding requirements of earthmoving and mining applications.
Material: Carbon steel or Boron steel 30mnB
Colors: Black or yellow
Technique: Forging casting
Surface Hardness: Carbon HRC280-320HB Boron HRC440-520HB
Yielding Point: Carbon 600Re-N/mm2 Boron 1440N/mm2
Certification: ISO9001-9002
FOB Price: FOB Xiamen USD 40-45/Piece
MOQ:USD4000
Delivery Time: Within 30 days after contract established
We offer a wide selection of blades manufactured from several grades of high carbon and boron steel. Many of these products are made from both high carbon and boron steel that are heat-treated and hardened to improve the lifespan while meeting the demanding requirements of earthmoving and mining applications.
Our production range can cover any product with maximum width of 410mm, maximum length of 6m and maximum thickness of 110mm.
2. Compatible models :
MACHINERY TYPE PART NO. WEIGHT (KGS) L*W*T | |
D155-3 | T140 |
(17M-71-21930) 70 680*330*40 | (0A31003) 20.5 |
(17M-71-21940) 70 680*330*40 | (0A31002) 20.5 |
(195-70-12492) 116.3 1327*330*35 | (0A31005) 52 |
(17A-71-11351) 65.2 761*330*35 | (0A31004) 44 |
D85,TY220 | D80 |
(150-70-21346) 26.4 435*254*30 | (150-70-21346) 26.4 435*254*30 |
(150-70-21356) 26.4 435*254*30 | (150-70-21356) 26.4 435*254*30 |
(154-70-11314) 54.4 1157*254*25 | (154-70-11314) 54.4 1157*254*25 |
(154-81-11191) 39.4 838*254*25 | D155-1,TY320 |
D355 | (175-71-22272) 37.1 540*254*40 |
(195-71-11173) 67 620*330*40 | (175-71-22282) 37.1 540*254*40 |
(195-71-11183) 67 620*330*40 | (175-70-26310) 50 1064*254*25 |
(195-71-11654) 93.2 1064*330*35 | D8N |
D9N | (8E4193) 50.6 600*400*35 |
(8E4196) 74 580*400*50 | (8E4194) 50.6 600*400*35 |
(8E4197) 74 580*400*50 | (4T6381) 98.3 1353*330*30 |
(6Y5539) 129.7 1787*330*30 | (6Y5540) 56.7 800*300*30 |
(6Y5540) 56.7 802*330*30 | D8L |
T160 | (3G8283) 75.2 680*400*40 |
(13F-Z27-1572) 16.3 325*204*25 | (3G8284) 75.2 680*400*40 |
(13F-Z27-1582) 16.3 325*204*25 | (4T9836) 147.5 1694*330*35 |
(130-70-51130) 41.2 1350*203*20 | (4T9838) 67.6 800*330*35 |
