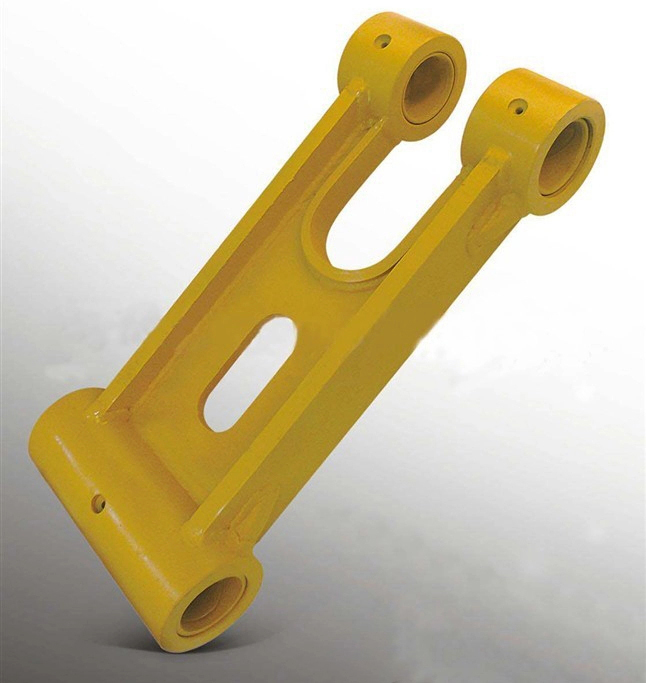

Excavator Parts Bucket Link(H-Link) For Caterpillar E320

◎surface hardness of 55HRC~58HRC.

◎The link rod provides yield strength of 800MPa.impact flexibility of 800kJ/m2 and center hardness of 22HRC~25HRC.

◎High strength CO2 gas shielded welding is used to ensure the strength of the link mechanism.

◎The internal liner is made of spheroidal graphite cast ironguaranteeing self-lubricating function when the bucket link is working

NOTICE: Since tipping links are not bushed, the bores will eventallly wear out and need replacing. Damage to both bucket links and tipping links can result from bucket pins coming adrift during digging, or from fouling on items such as lifting chains. Damaged links should be replaced immediately to avoid further damage to the bucket, dipper arm, and bucket ram.

Main technical parameter for some bucket link(H-link)

These models and parameters are for reference only, we can provide more products according to your requirements, please contact us. We will reply within 24 hours.

Q. You are a trader or a manufacture?

We are an industry and trade integration business, our factory located on Quanzhou Nan’an, and our sales department is in Xiamen. It’s about 100kms away from the factory.

Q. How can I be sure the part will fit my excavator?

Give us correct model number/machine serial number/ any numbers on the parts itself. Or measure the parts give us dimension or drawing. Also, we will confirm all the details before production.

Q. How about the payment terms?

T/T or L/C are acceptable, other payment terms also could be negotiated.

Q. What is your minimum order?

 It depends on what you are buying. Normally, our minimum order amount is USD5000. Full container and LCL container (less than a container load) shipment can be acceptable.
