1. Products Information :
We choose wear-resistant selection of quality, high-strength steel plate and high-strength anti-Rally wire and welding equipment to make the surface of jet mill with strong internal and external appearance.
1. Large bucket capacity and large open area;
2. Large stowing surface, and accordingly high coefficient of fullness;
3. The adapters are made of top-quality structural and high strength steel;
4. Save working time and improve working efficiency.
Applications: General digging of clay and light work such as loading of sand, earth and gravel

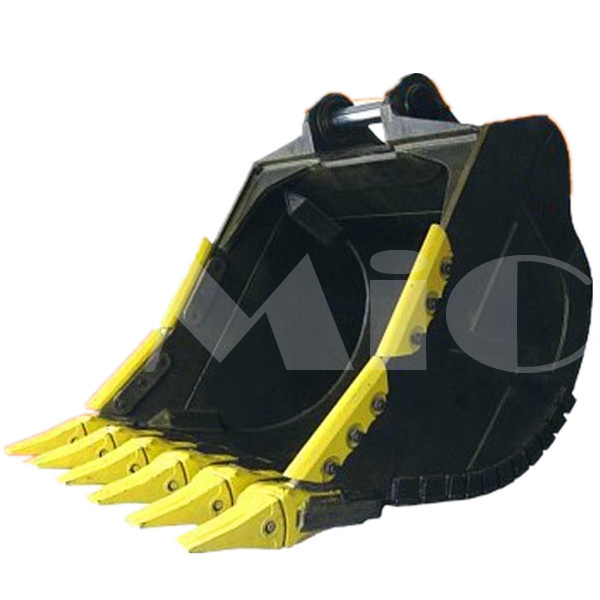

2. Features of Standard Bucket :
1). Large bucket capacity and large open area.
2). Large stowing surface, and accordingly high coefficient of fullness.
3). The adapters are made of domestic top quality structural and high strength steel.
4). Save working time, improve working efficiency.
3.Compatible models :
General digging of clay and light work such as loading of sand, earth and gravel.
PC200
Bucket Width Rated Capacity (m3) Teeth Weight(KGS)
24 0.7 3
30 0.97 4
36 1.2 5
42 1.3 5
48 1.52 6
54 1.7 6
Programmer Type
Material Configuration and Capability for appropriate working environment
Standard Bucket Q345B of standard plate thickness, homemade high quality tooth plate For digging clay, or loading the sand, mud and gravel.
Technical Parameters: Programmer
Code Related chemical composition Hardness (HB) Extension (%) Drag and extension intensity ( N/mm2) Bend intensity (N/mm2)
Material C Si Mn P S
Mn board Q345B 0.18 0.55 1.4 0.03 0.03 163-187 21 470-660 345
Homemade re-grinding board NM360 0.20 0.3 1.3 0.02 0.006 360 16 1200 1020
High intensity re-grinding board HARDOX-500 0.20 0.7 1.7 0.025 0.01 470-500 8 1550 1300
Workshop Products
We can supply more model for bucket:
Adaptation of Komatsu (PC55~PC650)
Adaptation of Caterpillar (Cat305~Cat385)
Adaptation of Hitachi (EX60~EX400,ZX35~ZX870)
Adaptation of Case (CX55~CX460)
Adaptation of Kobelco (SK55~SK480)
Adaptation of Sumitomo (SH75~SH460)
Adaptation of Hyundai (R55~R505)
Adaptation of Volvo (EC55~EC700)
Adaptation of Doosan (DH35~DH500)
Adaptation of Kato (HD75~ DH2047)
